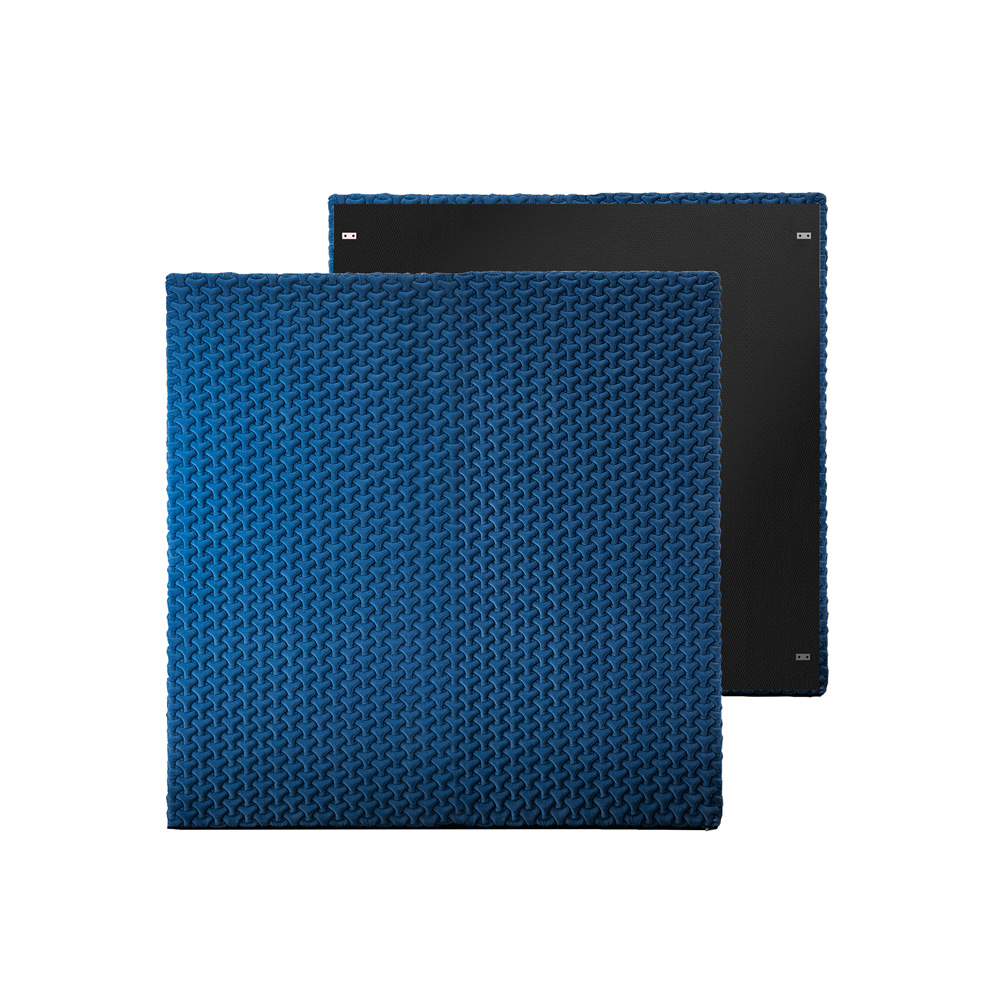

Quadro Phonolook 3D

Quadro 3D

The excellence in details, an innovative weaving technique.

The new Phonolook 3D line comes from the fine fabrics used in the interior design world.

Realized on the basis of the standard panels of the Solution line, the 3D Phonolook panels are characterized by an embossed fabric coating, able to give them shape and volume without depriving of their main functions in soundabsorbing.

Thanks to their particular manufacturing technique, the panels covered with 3D fabrics allow you to decorate private luxury locations in a sophisticated way, as well as the contract and hotel industry, with a unique expressive force.

5 different kinds of 3D fabrics are available and in different colors.

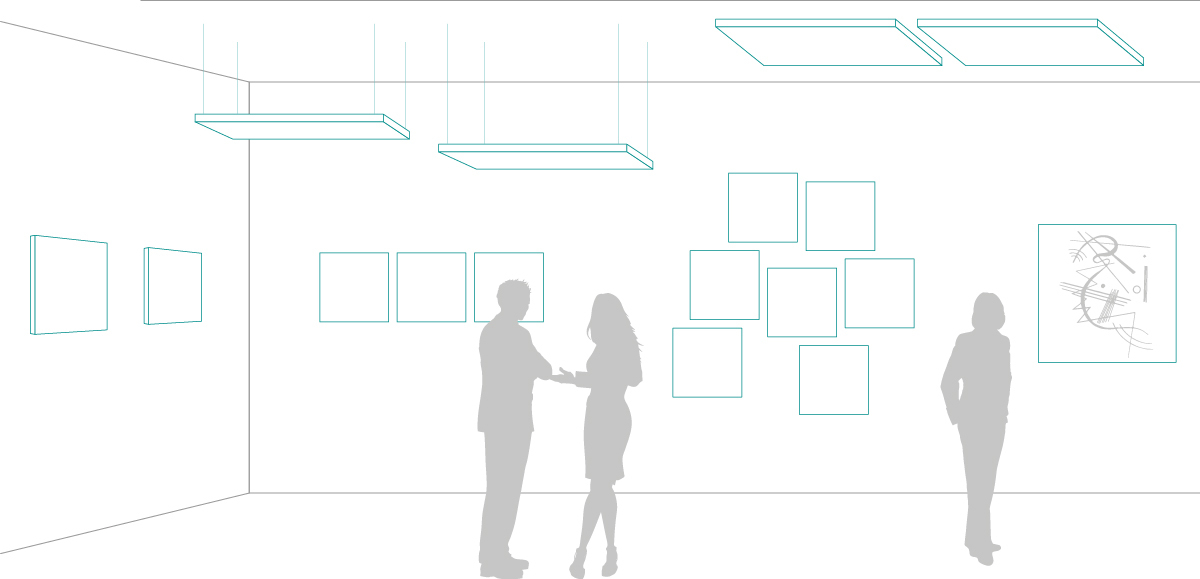

EXAMPLE OF PRODUCT APPLICATION AND COMPOSITION



Esempi di applicazione - phonolook 3d quadro

Esempi di applicazione - phonolook 3d quadro

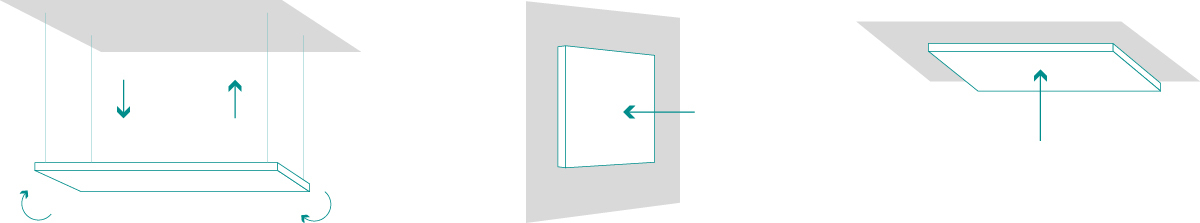

                 Ceiling suspension                                       Application in adherence to the wall           Application in adherence to the ceiling



PRODOTTO

Pannel Frame Side A Side B Thickness m2 Weight
LP11106065
Metal
600
600
50
0,36
4 kg
LP11112125
Metal
1200
1200
50
1,44
10 kg
LP12106065
Wood
600
600
50
0,36
2 kg
LP12112125
Wood
1200
1200
50
1,44
6 kg



Note: Possible production of panels with custom sizes.

The numerical values in the tables are expressed in mm.

The weights are indicative and may differ from those shown in the table.
