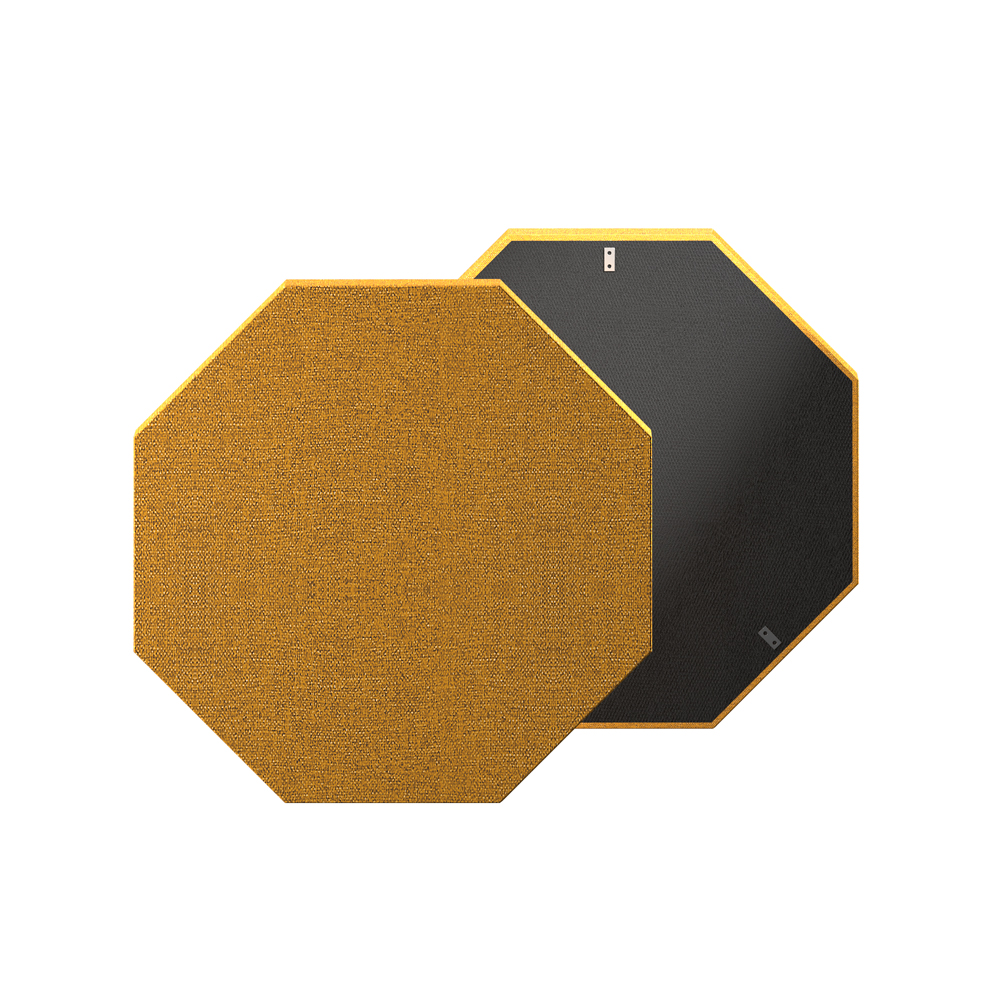

The octagonal shape, with corner finishes at 135°, of this sound absorbing panel of the Phonolook Solution Line allows you to create geometries and configurations of great aesthetic impact by correcting, in an optimal manner, the reverberation problems within large spaces.
With the fabric covering in Trevira CS with no seams, Ottagono offers a design that is always unique and original, playing with geometric combinations that come to life thanks to the many colors available in the range.
The fabrics in light colors can be further customized with an inkjet type print.
EXAMPLES OF COMPOSITION
AND APPLICATION OF THE PRODUCT
Ceiling suspension | Application in adherence to the wall | Application in adherence to the ceiling |
PRODOTTO
Pannel | Frame | Side | Thickness | m2 | Weight |
---|---|---|---|---|---|
LP31500235 | Metal | 230 | 50 | 0,25 | 3,5 kg |
LP31500385 | Metal | 380 | 50 | 0,70 | 6 kg |
LP32500235 | Wood | 230 | 50 | 0,25 | 2 kg |
LP32500385 | Wood | 380 | 50 | 0,70 | 3,5 kg |
NOTE: Possible production of panels with custom sizes.
The numerical values in the table are expressed in mm.
The weights are indicative and may differ from those shown in the table.
